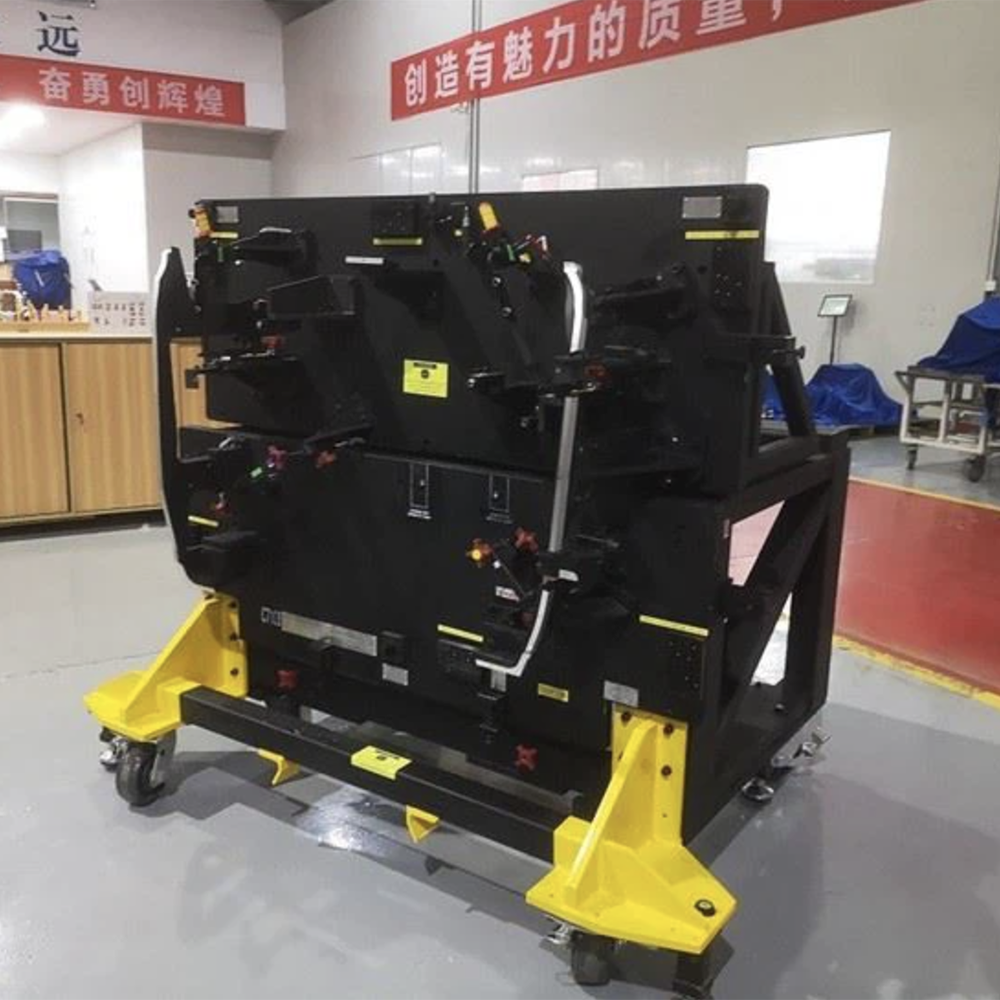

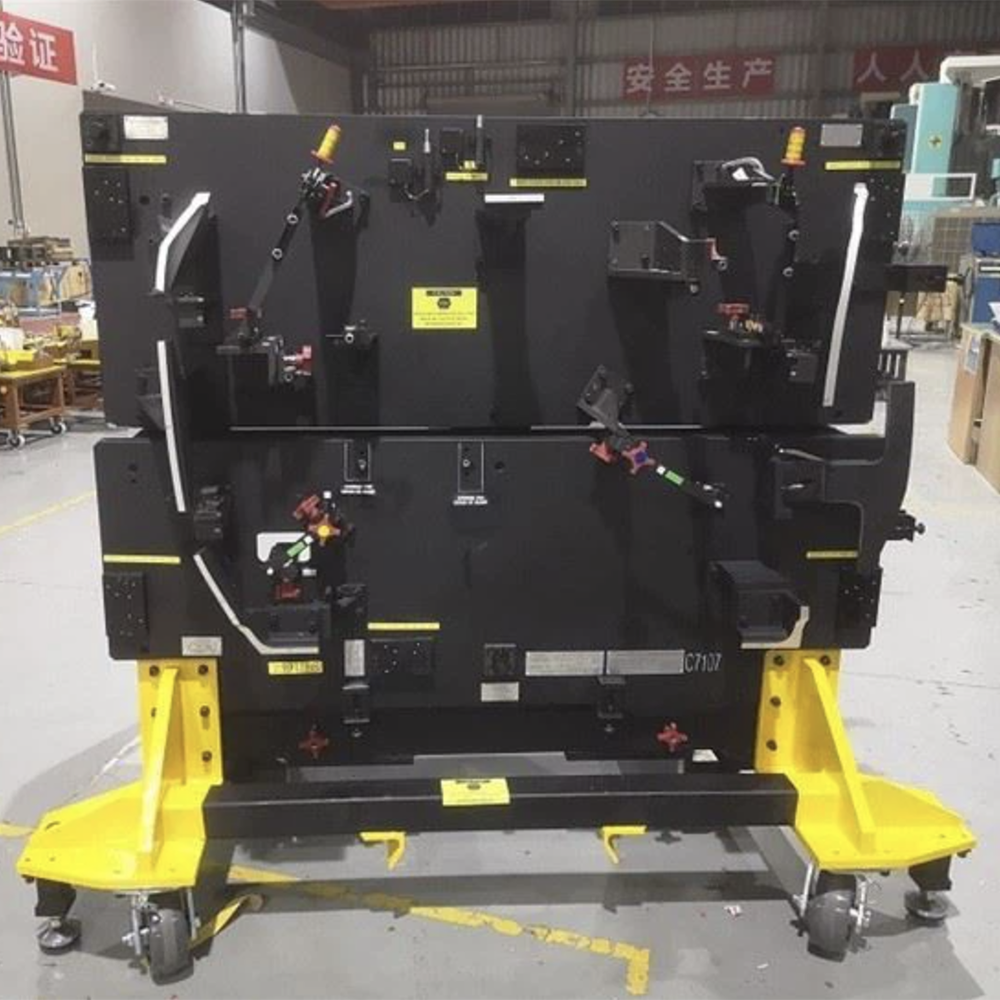

Holding Fixture: Fixed products are positioned according to the way specified in the product drawings, and it has no detection function itself and serves as a special Fixture for CMM product measurement.Measuring support is an auxiliary support for measuring parts of CMM. All supporting surfaces (points) and positioning datum planes must be milling based on CAD data of parts. Some measuring supports for special parts should also have the function of partial checking tools.
CMM fixtures system is designed and developed by Sunyuu which means to help CMM users to improve the reproducibility and accuracy of the inspection process by providing quick and repeatable fixturing set-ups for the components. CMM fixtures are modular and can be expanded with user's requirements to provide a complete fixturing solution for any part regardless of its size, shape or material.
For multiple applications such as aerospace, automotive, plastic or metal parts, Sunyuu can provide a full solution to the CMM fixturing requirements. The series offers fixture plates with M8 threaded fittings in a wide choice of standard sizes, which are made of high accurate aluminum material and with complex manufacturing process, to ensure the accuracy and reliability of the system. Perfect fixturing solutions can be assembled very quickly without any tools to increase throughput and avoid delays in inspection.
