Checking Fixtures, CMM Holding Fixtures and Gauges
Checking fixtures are designed for accuracy, repeatability and reliability with a strong focus on operator ergonomics.
We offer assembly and checking fixtures for vehicle frames and body sub-assemblies, single component fixtures for all metal and plastic parts, flush and feeler gap checking, mating part simulation and three axis true position probing.
Fixtures and gauges available for a large variety of plastic and metal parts such as: Instrument panels, Interior trim,Seating, HVAC, Chassis components, Body panels, Door seals, and trim.
We can produce the different types of checking fixtures:
· CMM fixtures : composed of centring elements and fixations enabling to position the part in space and to control it by CMM machine.
Checking fixtures with Go/No Go or digital measuring instrument controls: composed of centring elements and fixations of the parts, with manual controls by Go/No Go pins or measuring devices providing a digital value compared with the nominal value – dial indicator,digital probe, measuring ruler, torque wrench, inclinometer, etc.)
· Cubings:representation of the complete environment of the part or of the assembly to be controlled, exact simulation of the components surrounding the part. This type of fixture also includes centring elements and fixations, and can also have controls by Go/No Go and measuring instruments as on any type of checking fixture.
· Automated checking fixtures: composed of centring elements and fixations of the part, with automated controls to get a very short cycle time enabling to control 100% of the production.
If you are going to check the quotation of IP assembly parts checking fixture made in China from one of the famous automotive IP plastic
parts checking fixture manufacturers and suppliers in China, It is always at your service.

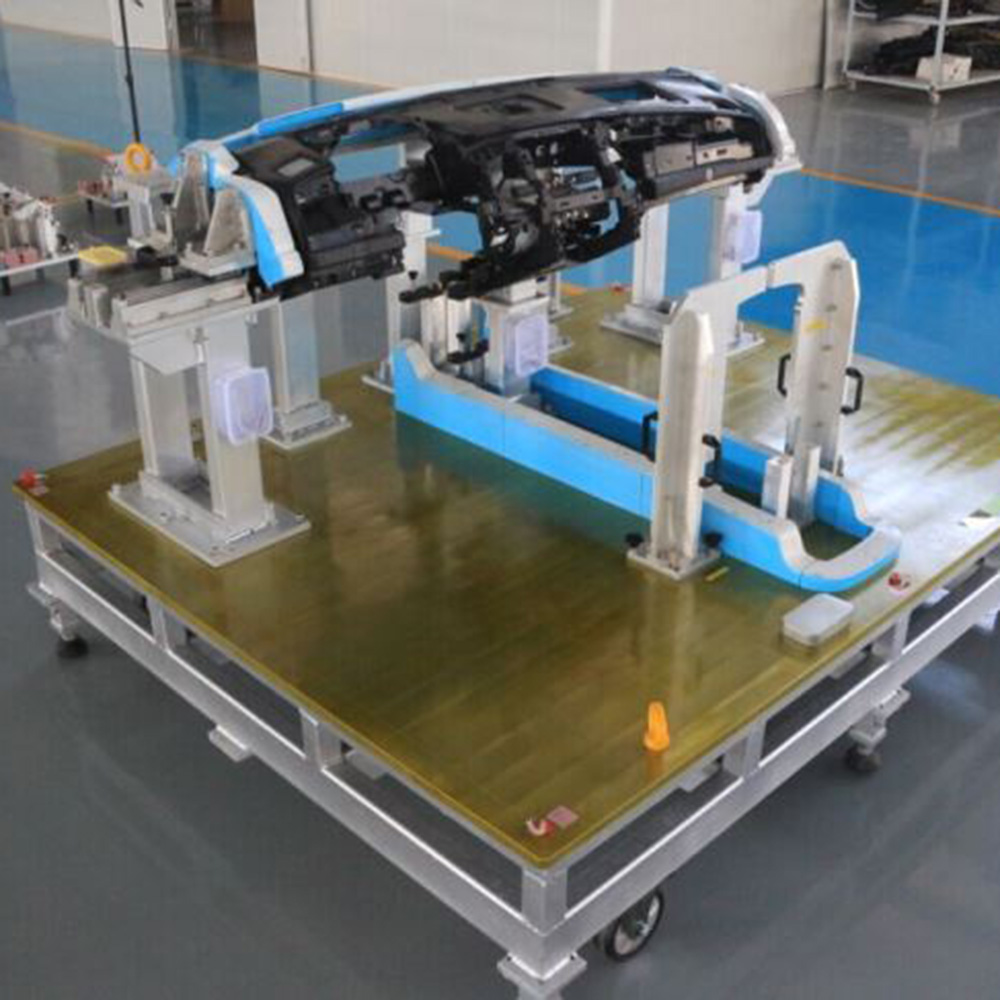

1. Design and manufacture checking fixture for IP assembly parts
2. All Design 100% according to customer requirement.
3. Supply OEM Service
4. Material:steel/Aluminium/Resin
5. ISO 9001:2015 Certificate
6. High quality and competitive price.
7. Design 7 days,manufacturing 30 days
8. Excellent after sale service.
9. Delivery term：EXW,FOB,CIF,DDU,DDP
10. R&R study, 3rd Party certification
11. shipping：By Ocean/by Air.
Sunyuu is making better checking fixture in terms of quality and maintainability. We have been
incorporating more standard checking fixture components into our checking fixture builds thus
reducing the variability associated with custom components. We use non-marking clamps so all
inspected parts can be returned to production. We rely on checking fixture base suppliers for
standard bases whenever possible. Our aluminum and steel fixture bases have a solid base plate and
fabricated supports. The single piece fabrication has a high structural rigidity at lower
weight.HINA. 523000
If you are going to check the quotation of checking fixture for ip assembly parts made in China from one of the famous checking fixture for ip assembly parts manufacturers and suppliers in China, It is always at your service.
